Rubber Dispersion Kneader
5 Litres Lab Rubber Dispersion Kneader Machine
| Mixing Capacity | 5 Litres |
| Chamber Volume | 15 Litres |
| Main Motor | 7.5 kW |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 25 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 2 HP |
| Air Compressor | 2 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and jacketed (both longitudinal and transverse) for efficient steam heating and water cooling. The hydraulic tilting arrangement ensures smooth discharge and easy cleaning after every batch.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips provide excellent temperature regulation. The hard-faced and precision-profiled node lands ensure superior durability and uniform compound mixing.
Pressure Lid
Heavy-duty fabricated steel pressure lid with integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants.
Dust Seal
Specially designed dust sealing system helps maintain a clean laboratory environment while allowing quick replacement and easy maintenance.

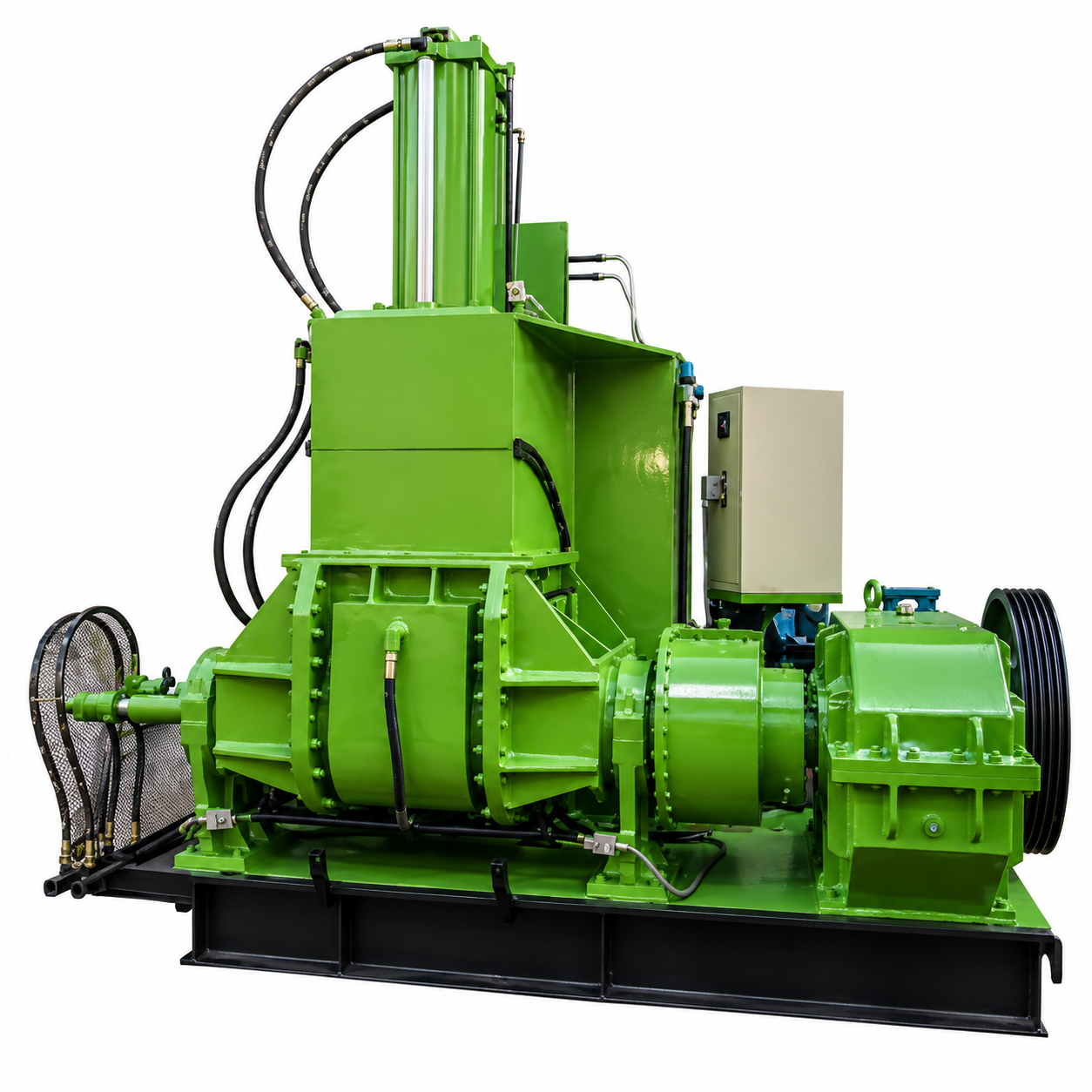

15 Litres Rubber Dispersion Kneader Machine
| Mixing Capacity | 15 Litres |
| Chamber Volume | 25 Litres |
| Main Motor | 20 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 25 RPM |
| Tilting Angle | 130 Degree |
| Tilting Motor | 2 HP |
| Air Compressor | 2 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling with hydraulic tilt arrangement for easy discharge and cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for excellent temperature regulation. The nodes are hard faced and profiled for longer operational life.
Pressure Lid
Steel fabricated pressure lid with heating and cooling jacket. Hard faced at the material contact area. Pneumatic and hydraulic variants are available.
Dust Seal
Specially designed dust sealing system keeps the working environment clean and allows quick replacement whenever required.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

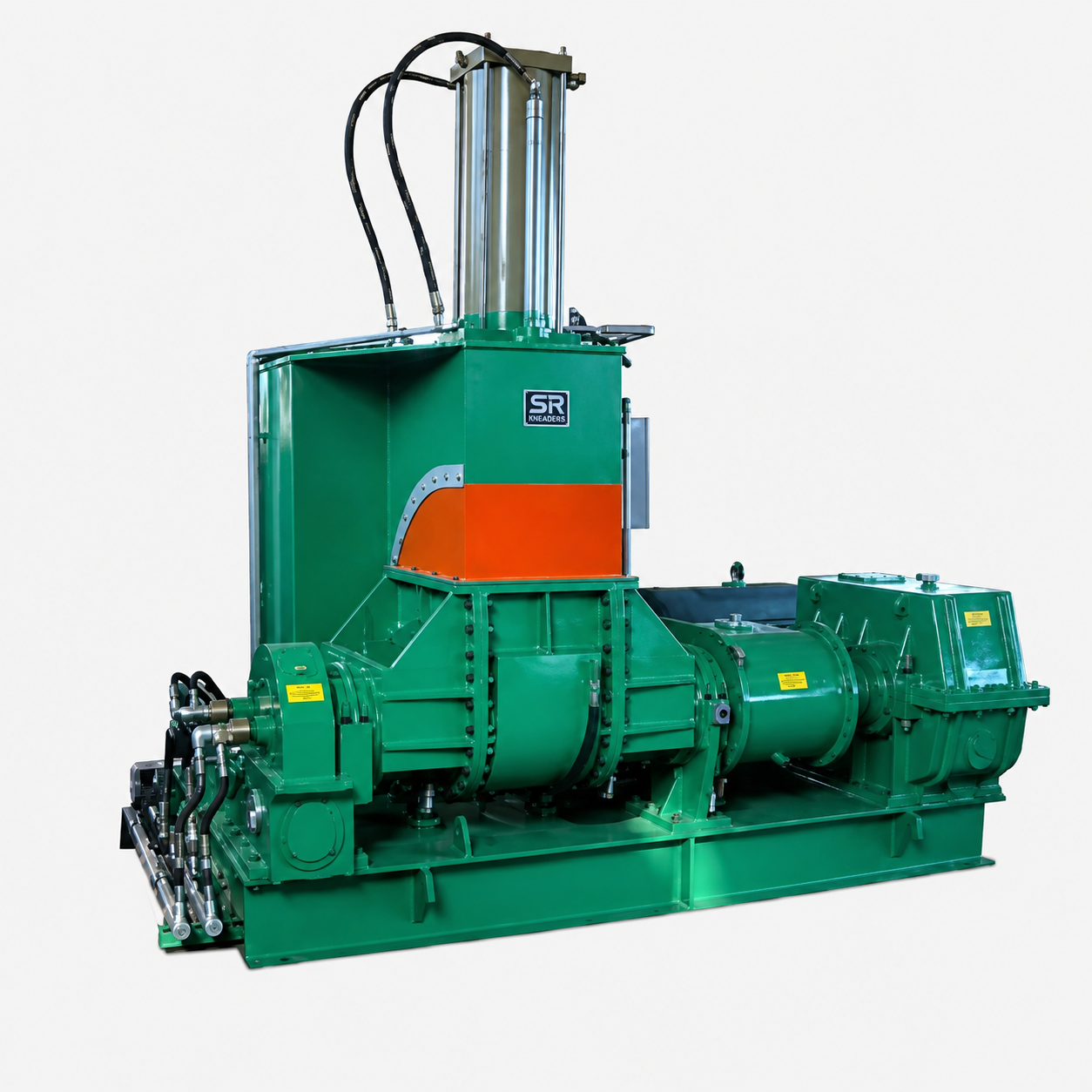

20 Litres Rubber Dispersion Kneader Machine
Minimum Order Quantity: 1 Piece
| Mixing Capacity | 20 Litres |
| Chamber Volume | 45 Litres |
| Main Motor | 30 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 25 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 2 HP |
| Air Compressor | 5 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling with tilt arrangement for easy discharge and cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for excellent temperature regulation. The nodes' land is hard faced and profiled.
Pressure Lid
Jacketed for effective heating and cooling, steel fabricated and hard faced at the mix contact area. Pneumatic and hydraulic variants are available.
Dust Seal
Designed specifically to maintain a clean working environment and can be replaced easily whenever required.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.
Additional Information
| Production Capacity | As per Demand |
| Delivery Time | 15-20 Days |
| Packaging Details | As per Demand |

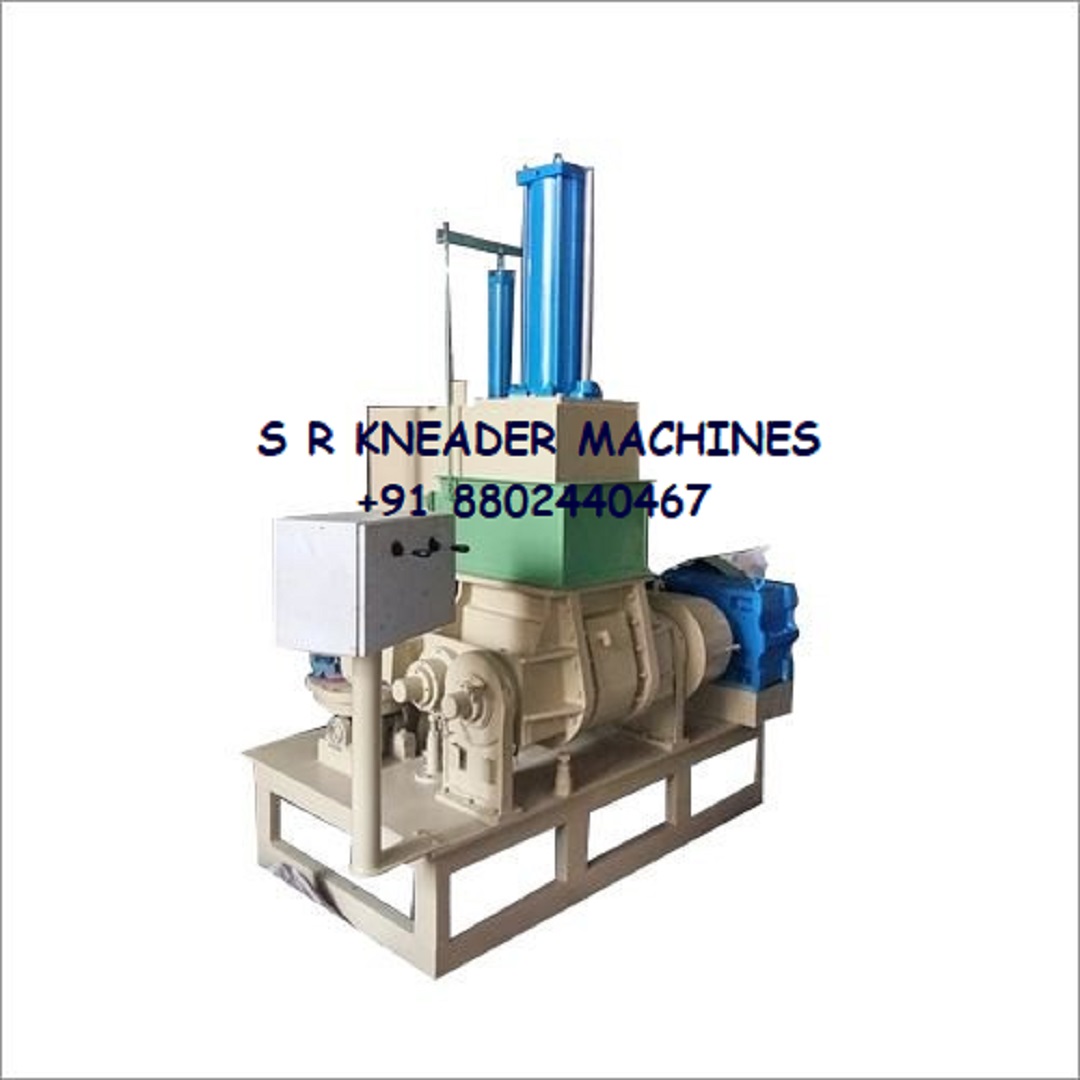

25 Litres Screw Tilting Rubber Dispersion Kneader Machine
| Mixing Capacity | 25 Litres |
| Chamber Volume | 55 Litres |
| Main Motor | 45 HP |
| Tilting Method | Screw |
| Tilting Angle | 120-140 Degrees |
| Tilting Motor | 3 HP |
| Air Compressor | 5 HP |
| Weight | 5 Tons |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated alloy steel, hard faced and jacketed for steam heating and water cooling with tilt arrangement for easy discharge and cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for excellent temperature regulation.
Pressure Lid
Jacketed for efficient heating and cooling with hard-faced mix contact area. Pneumatic and hydraulic versions available.
Dust Seal
Designed to maintain a clean working environment while allowing quick replacement and easy maintenance.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires.
- Conveyor belts & power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies.

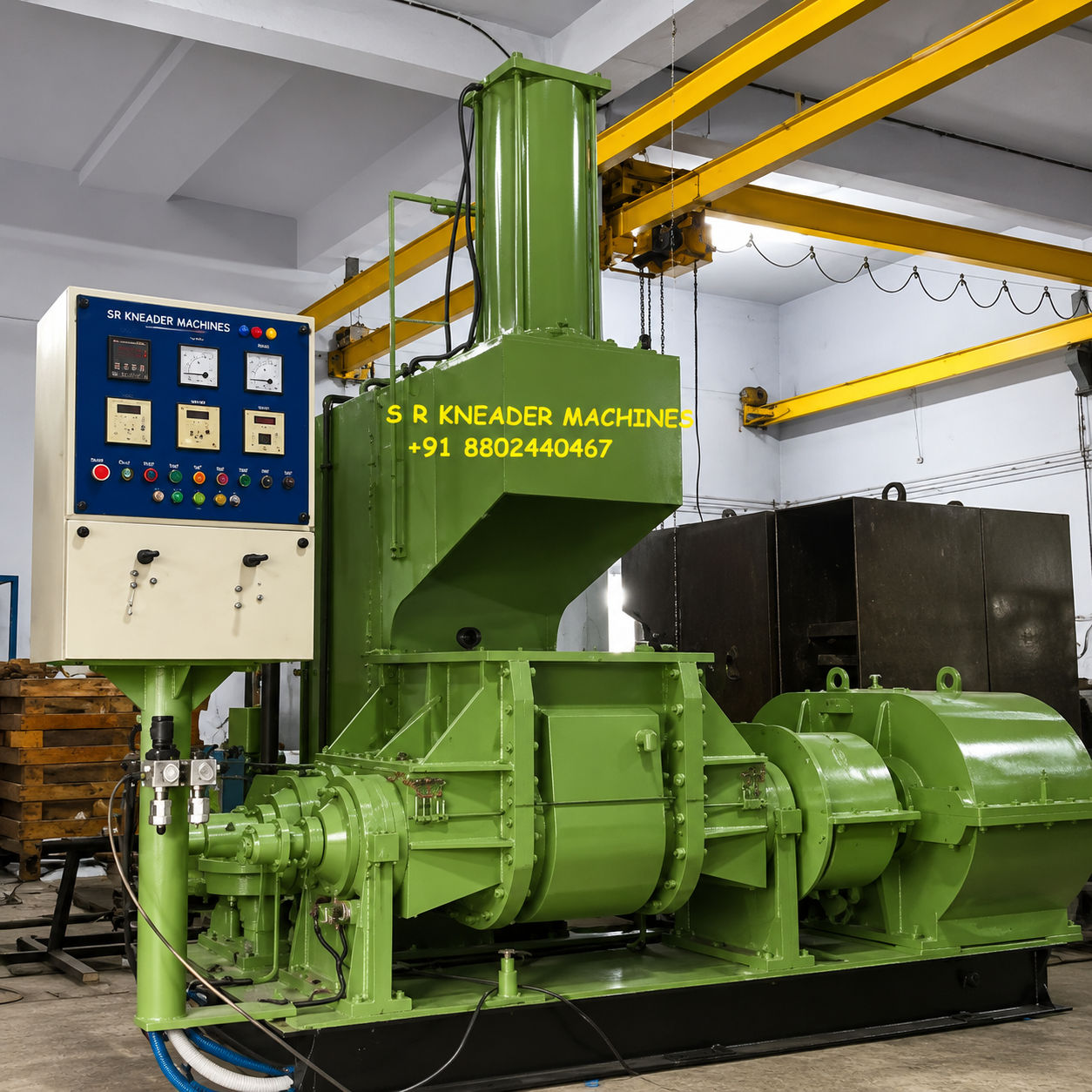

25 Litres Rubber Dispersion Kneader Machine (40 HP)
| Mixing Capacity | 25 Litres |
| Chamber Volume | 50 Litres |
| Main Motor | 40 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 25 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 3 HP |
| Air Compressor | 5 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling. The hydraulic tilt arrangement enables easy discharge and effortless cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips ensure excellent temperature regulation. The node lands are hard faced and precision profiled for maximum durability and efficient mixing.
Pressure Lid
Steel fabricated pressure lid with integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants.
Dust Seal
A specially engineered dust sealing system maintains a clean working environment while allowing quick replacement and hassle-free maintenance.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

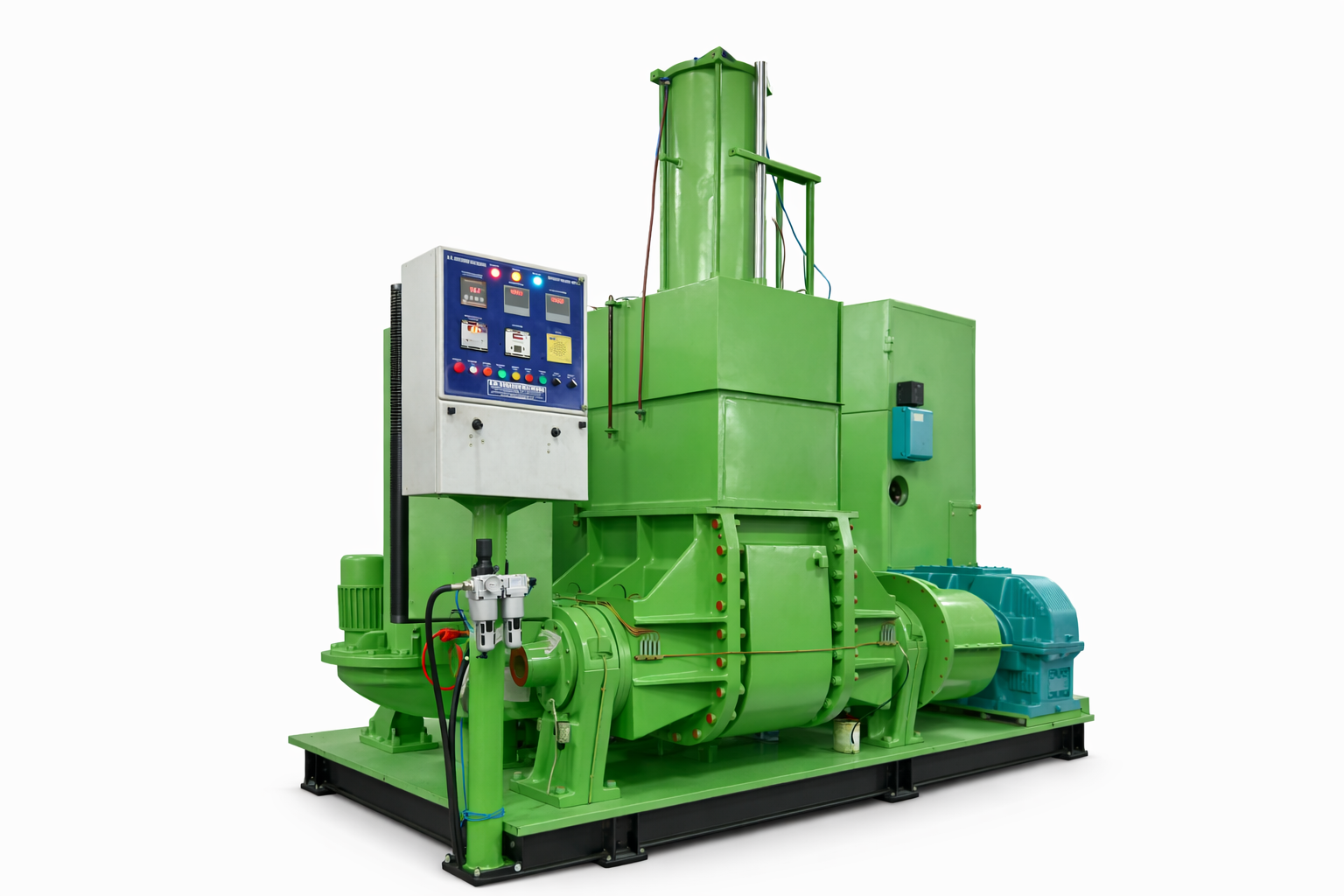

35 Litres Rubber Dispersion Kneader Machine (45 kW)
Minimum Order Quantity : 1 Piece
| Mixing Capacity | 35 Litres |
| Chamber Volume | 75 Litres |
| Main Motor | 45 kW |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 24 RPM |
| Tilting Angle | 130 Degree |
| Tilting Motor | 3 HP |
| Air Compressor | 3 HP |
Material Construction
Mixing Chamber
Fabricated alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling with hydraulic tilt arrangement for easy discharge and cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for excellent temperature regulation. The nodes are hard faced and profiled for enhanced durability and performance.
Pressure Lid
Steel fabricated pressure lid with heating and cooling jacket. Hard faced at the material contact area. Pneumatic and hydraulic variants are available.
Dust Seal
Specially designed dust sealing system maintains a clean working environment and allows quick and easy replacement whenever required.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.
Additional Information
| Production Capacity | As per Demand |
| Delivery Time | 15-20 Days |
| Packaging Details | As per Demand |

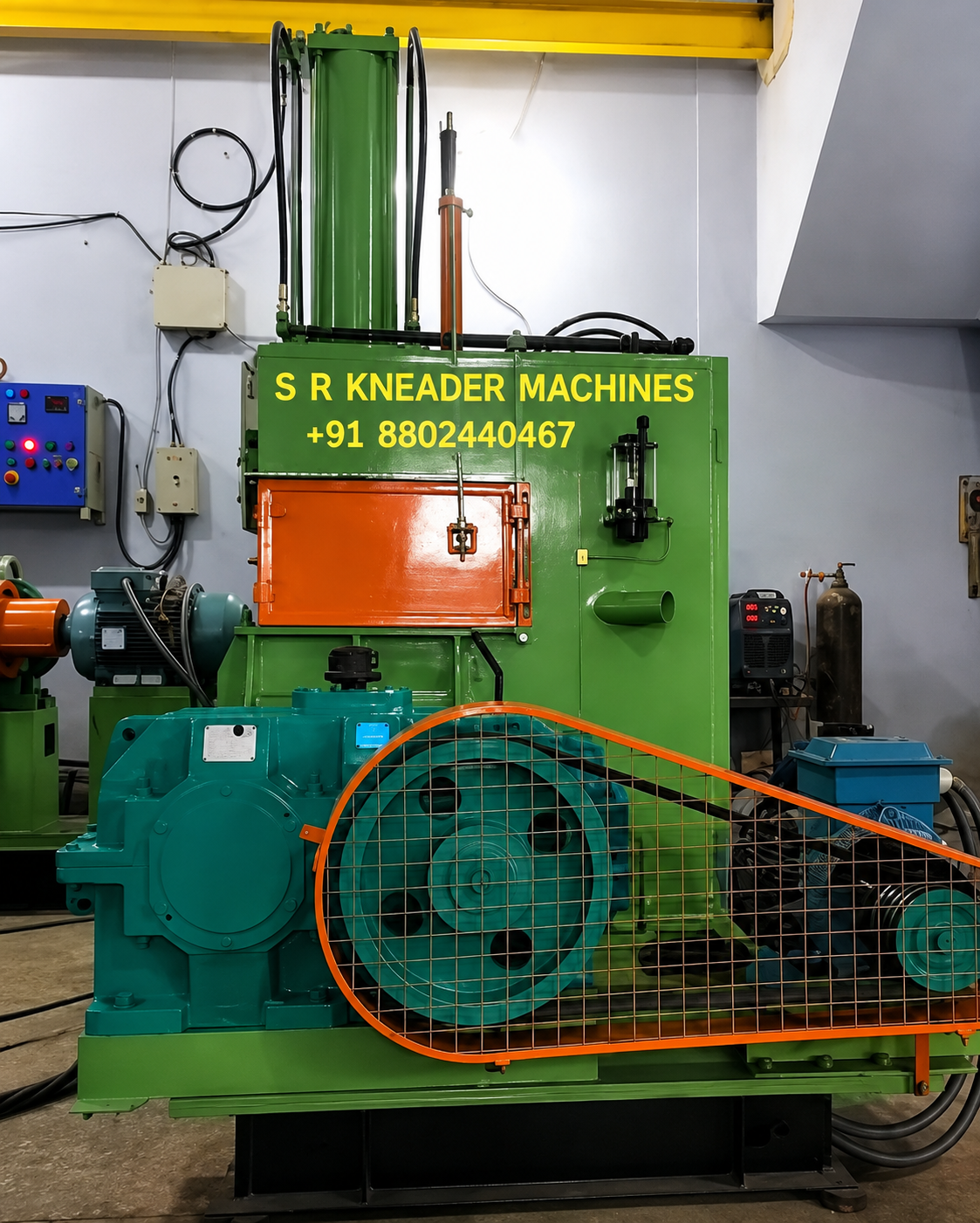

35 Litres Rubber Dispersion Kneader Machine (60 HP)
| Mixing Capacity | 35 Litres |
| Chamber Volume | 75 Litres |
| Main Motor | 60 HP |
| Tilting Method | Hydraulic |
| Tilting Angle | 130 Degree |
| Tilting Motor | 3 HP |
| Air Compressor | 3 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling. The hydraulic tilting mechanism enables easy discharge and effortless cleaning after every mixing cycle.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips ensure excellent temperature regulation. The node lands are hard faced and precision profiled for long service life and efficient mixing performance.
Pressure Lid
Heavy-duty fabricated steel pressure lid with integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants.
Dust Seal
Specially designed dust sealing system maintains a clean working environment while allowing quick replacement and low-maintenance operation.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

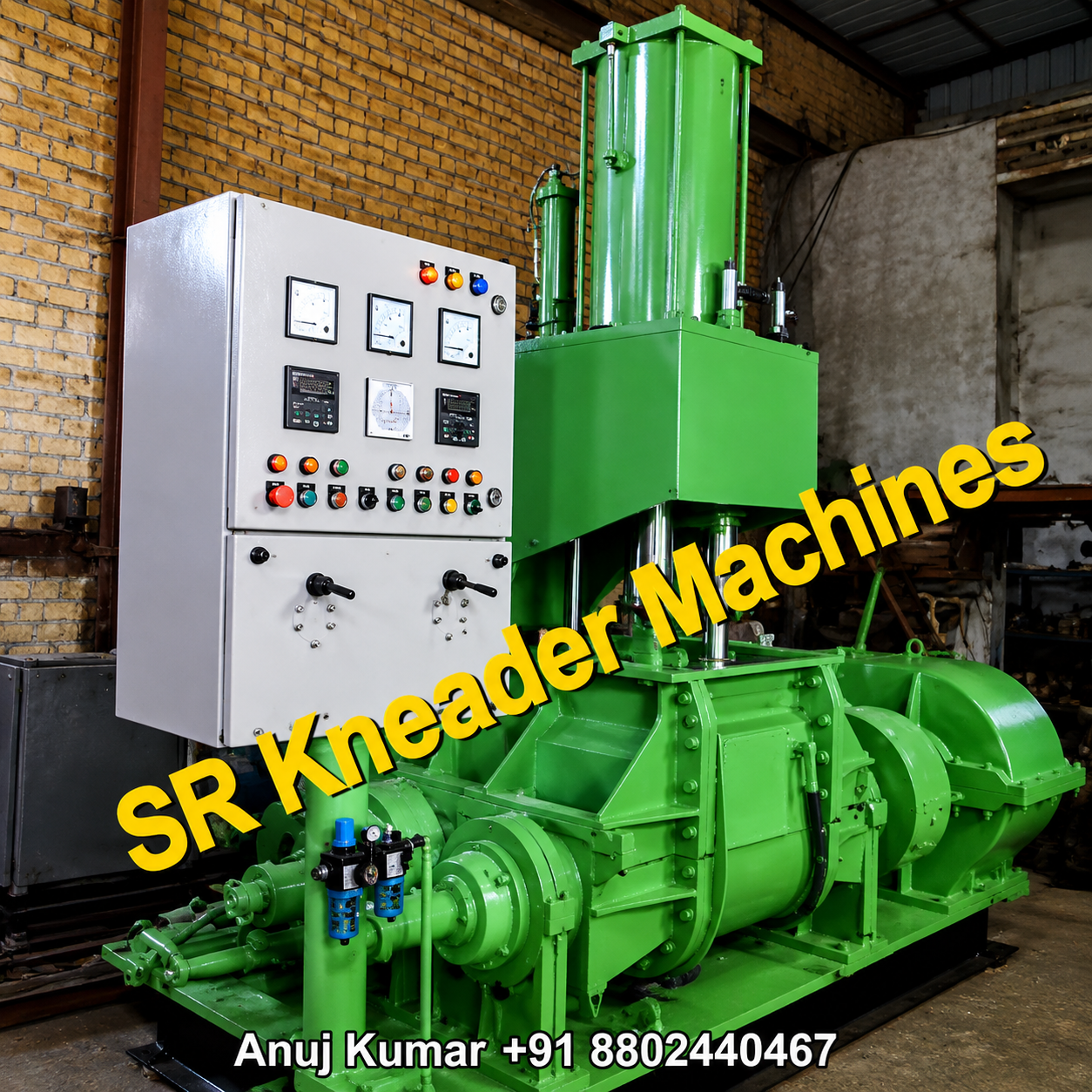

40 Litres Rubber Dispersion Kneader Machine
Minimum Order Quantity : 1 Piece
| Mixing Capacity | 40 Litres |
| Chamber Volume | 80 Litres |
| Main Motor | 60 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 25 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 5 HP |
| Air Compressor | 5 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and jacketed (both longitudinal and transverse) for efficient steam heating and water cooling. The hydraulic tilt arrangement ensures smooth discharge and easy cleaning after every mixing cycle.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips provide excellent temperature regulation. The node lands are hard faced and precision profiled for superior durability and efficient compound mixing.
Pressure Lid
Heavy-duty fabricated steel pressure lid with an integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants.
Dust Seal
Specially designed dust sealing system helps maintain a clean working environment while allowing quick replacement and low-maintenance operation.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.
Additional Information
| Production Capacity | As per Demand |
| Delivery Time | 20 Days Approx. |
| Packaging Details | As per Demand |
55 Litres Rubber Dispersion Kneader Machine
| Mixing Capacity | 55 Litres |
| Chamber Volume | 125 Litres |
| Main Motor | 75 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 25 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 3 HP |
| Air Compressor | 7.5 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling with hydraulic tilt arrangement for easy discharge and cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for excellent temperature regulation. The nodes are hard faced and profiled for extended service life.
Pressure Lid
Steel fabricated pressure lid with heating and cooling jacket. Hard faced at the material contact area. Pneumatic and hydraulic variants are available.
Dust Seal
Specially designed dust sealing system maintains a clean working environment and can be replaced quickly whenever required.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.
55 Litres Super Mix Rubber Dispersion Kneader Machine
| Mixing Capacity | 55 Litres |
| Chamber Volume | 125 Litres |
| Main Motor | 65 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 24 RPM |
| Tilting Angle | 130 Degree |
| Tilting Motor | 5 HP |
| Air Compressor | 7.5 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling. Equipped with a hydraulic tilt mechanism for easy discharge and cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for superior temperature regulation. The node lands are hard faced and accurately profiled for long service life.
Pressure Lid
Steel fabricated pressure lid with heating and cooling jacket. Hard faced at the material contact area. Available in both pneumatic and hydraulic variants.
Dust Seal
Specially designed dust sealing system keeps the working environment clean and allows quick, hassle-free replacement whenever required.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

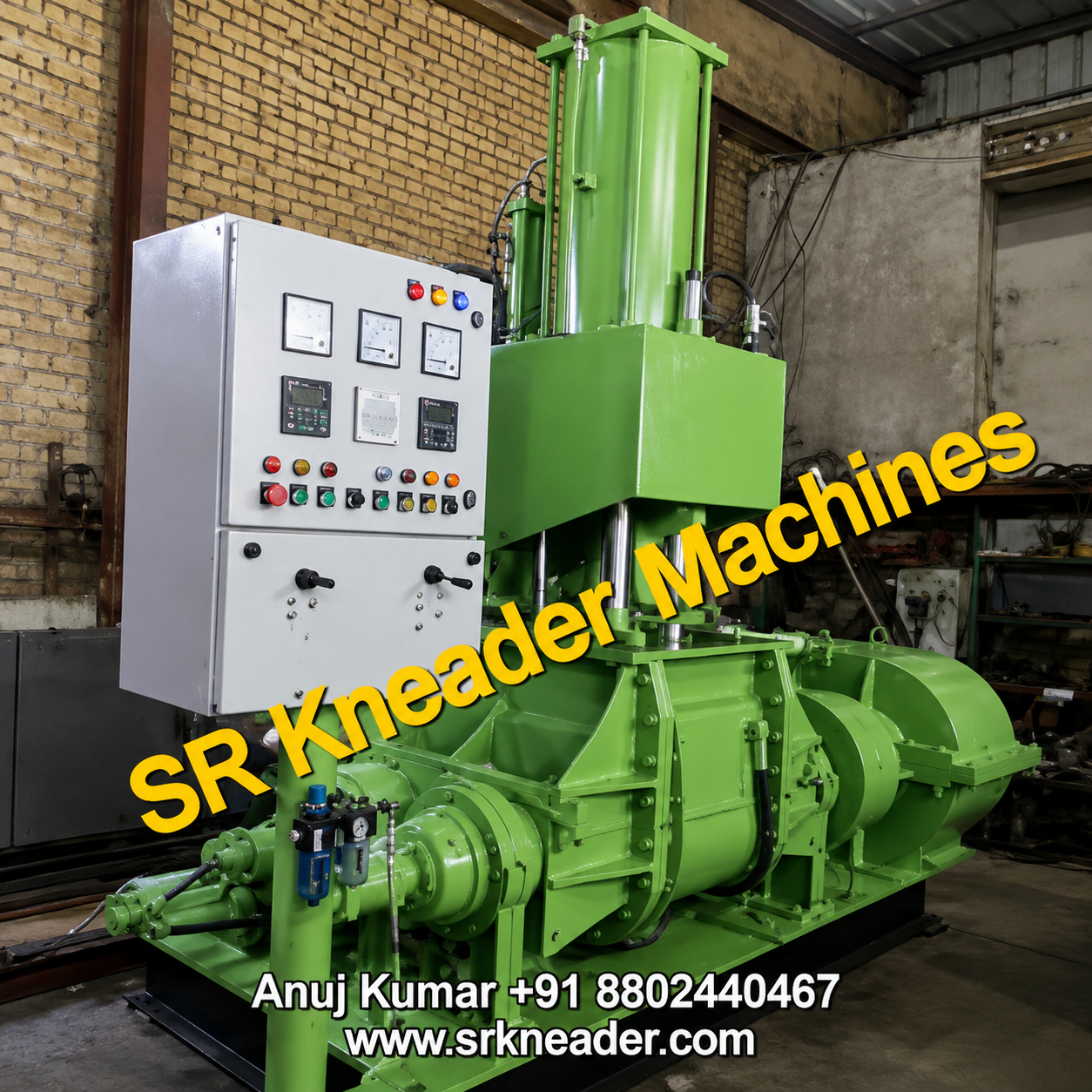

75 Litres Rubber Dispersion Kneader Machine (125 HP)
| Mixing Capacity | 75 Litres |
| Chamber Volume | 170 Litres |
| Main Motor | 125 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 35 / 30 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 3 HP |
| Air Compressor | 3 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from high-grade alloy steel, hard faced and fully jacketed (both longitudinal and transverse) for steam heating and water cooling. The hydraulic tilt mechanism ensures smooth discharge and easy cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for superior temperature regulation. The node lands are hard faced and precision profiled to provide maximum durability and efficient mixing.
Pressure Lid
Steel fabricated pressure lid with an integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants.
Dust Seal
Specially engineered dust sealing system helps maintain a clean working environment while allowing quick replacement and easy maintenance.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

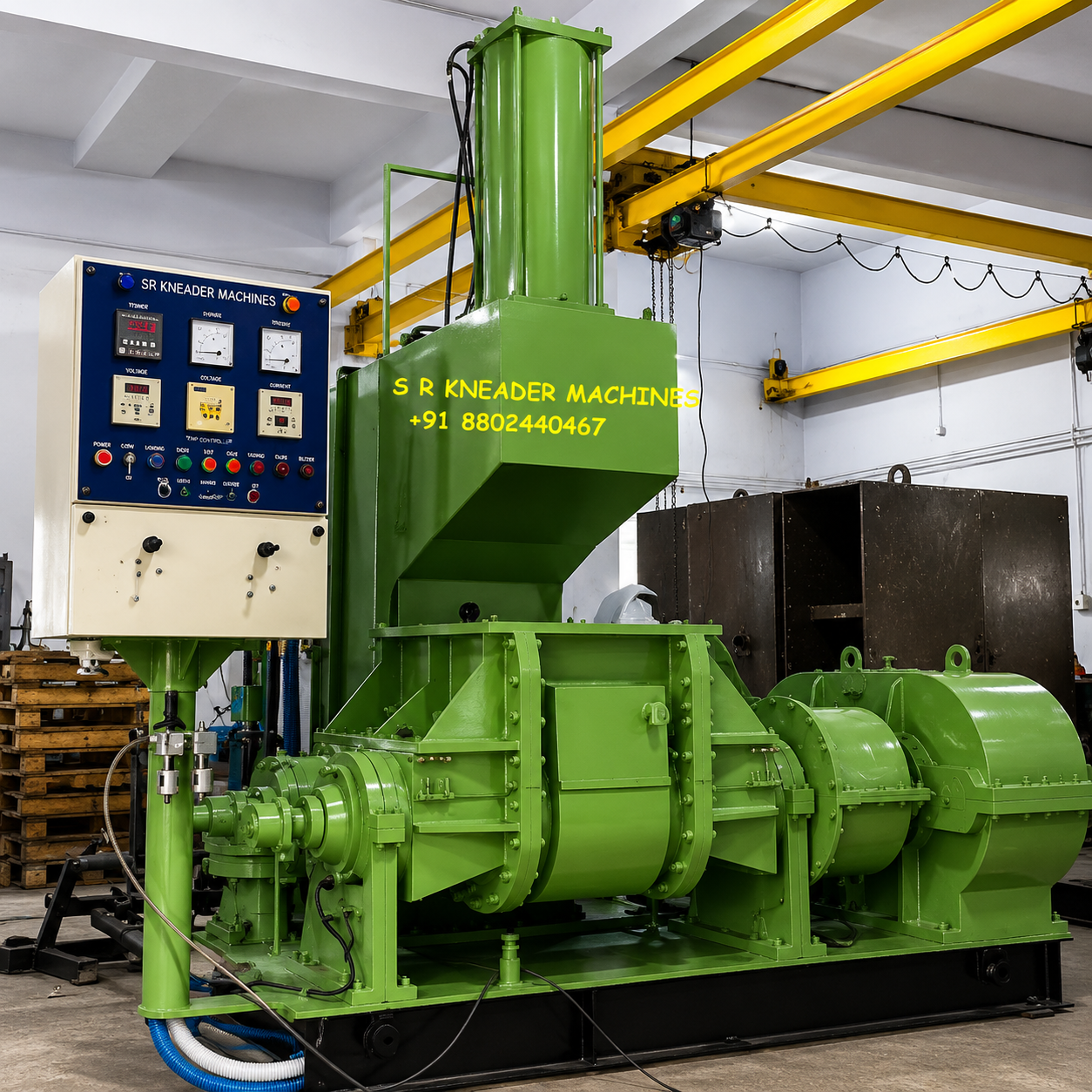

75 Litres Rubber Dispersion Kneader Machine (100 HP)
Minimum Order Quantity : 1 Piece
| Mixing Capacity | 75 Litres |
| Chamber Volume | 170 Litres |
| Main Motor | 100 HP |
| Tilting Method | Hydraulic |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 5 HP |
| Air Compressor | 7.5 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling. The hydraulic tilt arrangement enables smooth discharge and easy cleaning after every batch.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips ensure excellent temperature regulation. The node lands are hard faced and precision profiled to provide maximum durability and efficient compound mixing.
Pressure Lid
Steel fabricated pressure lid with integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants for reliable performance.
Dust Seal
Specially engineered dust sealing system maintains a clean working environment while allowing quick replacement and low-maintenance operation.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

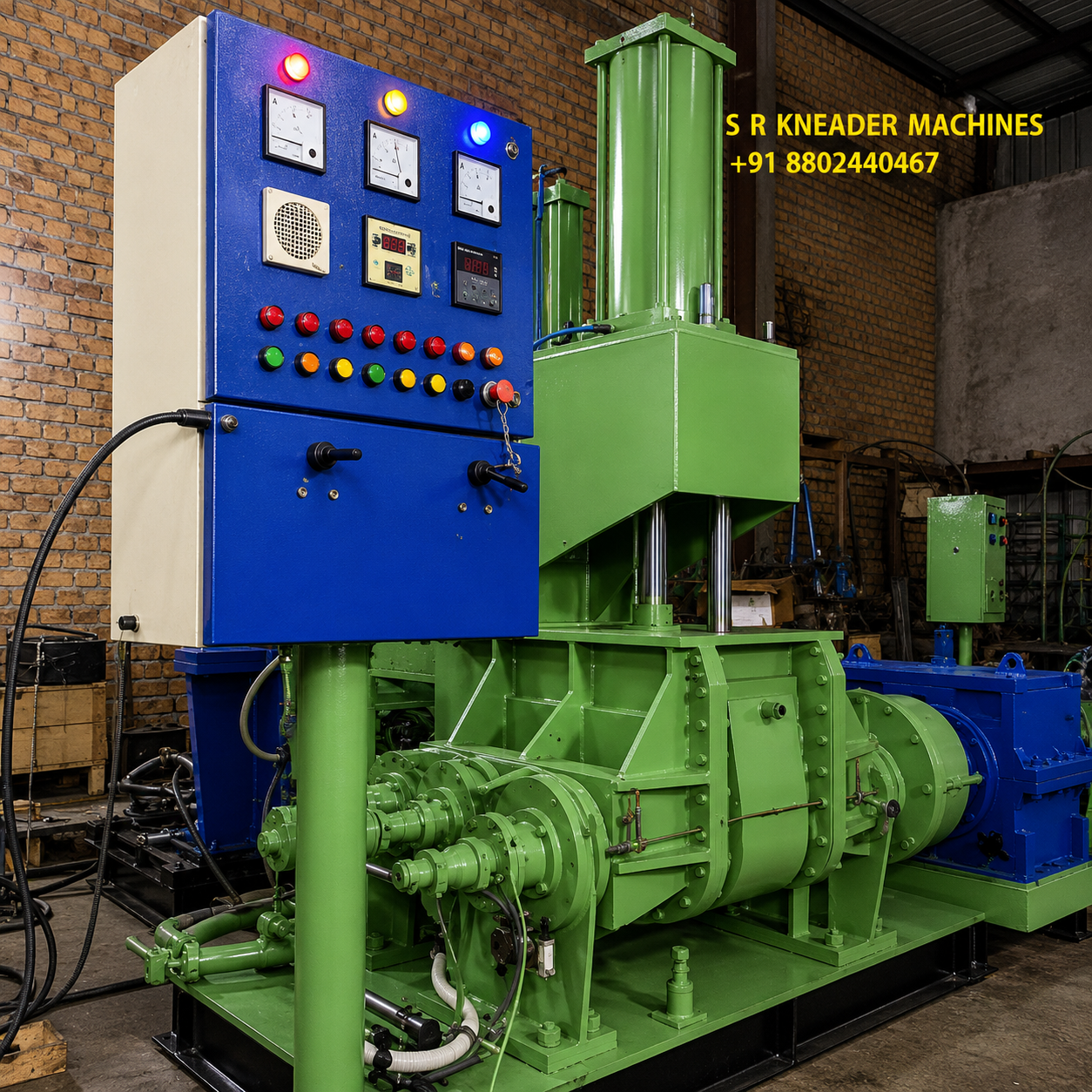

100 Litres Rubber Dispersion Kneader Machine
Minimum Order Quantity : 1 Piece
| Mixing Capacity | 100 Litres |
| Chamber Volume | 215 Litres |
| Main Motor | 125 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 24 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 5 HP |
| Air Compressor | 7.5 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling. The hydraulic tilt arrangement enables smooth discharge and effortless cleaning after every mixing cycle.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips provide excellent temperature regulation. The node lands are hard faced and precision profiled to ensure long service life and superior mixing efficiency.
Pressure Lid
Heavy-duty fabricated steel pressure lid with integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants for reliable operation.
Dust Seal
Specially designed dust sealing system maintains a clean working environment while allowing quick replacement and low-maintenance operation.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

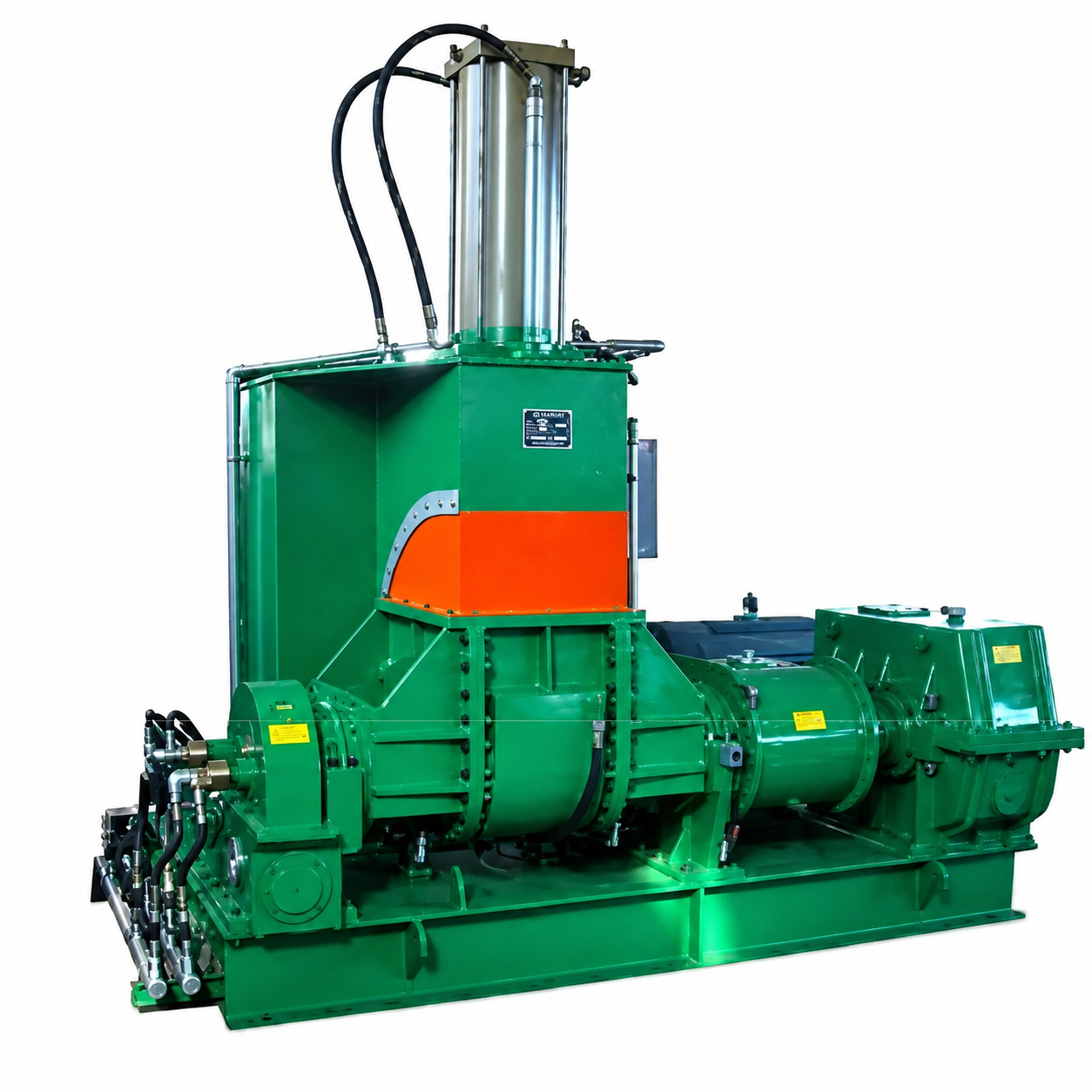

110 Litres Rubber Dispersion Kneader Machine
Minimum Order Quantity : 1 Piece
| Mixing Capacity | 110 Litres |
| Main Motor | 90 kW |
| Tilting Method | Hydraulic |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 5 HP |
| Air Compressor | 10 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling with hydraulic tilt arrangement for easy discharge and cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips for excellent temperature regulation. The nodes are hard faced and profiled for longer service life.
Pressure Lid
Steel fabricated and jacketed for efficient heating and cooling. Hard faced at the material contact area. Pneumatic and hydraulic variants are available.
Dust Seal
Specially designed dust sealing system keeps the working environment clean and allows quick replacement whenever required.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires.
- Conveyor belts & power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.
Additional Information
| Production Capacity | As per Demand |
| Delivery Time | 15-20 Days Approx. |
| Packaging Details | As per Demand |

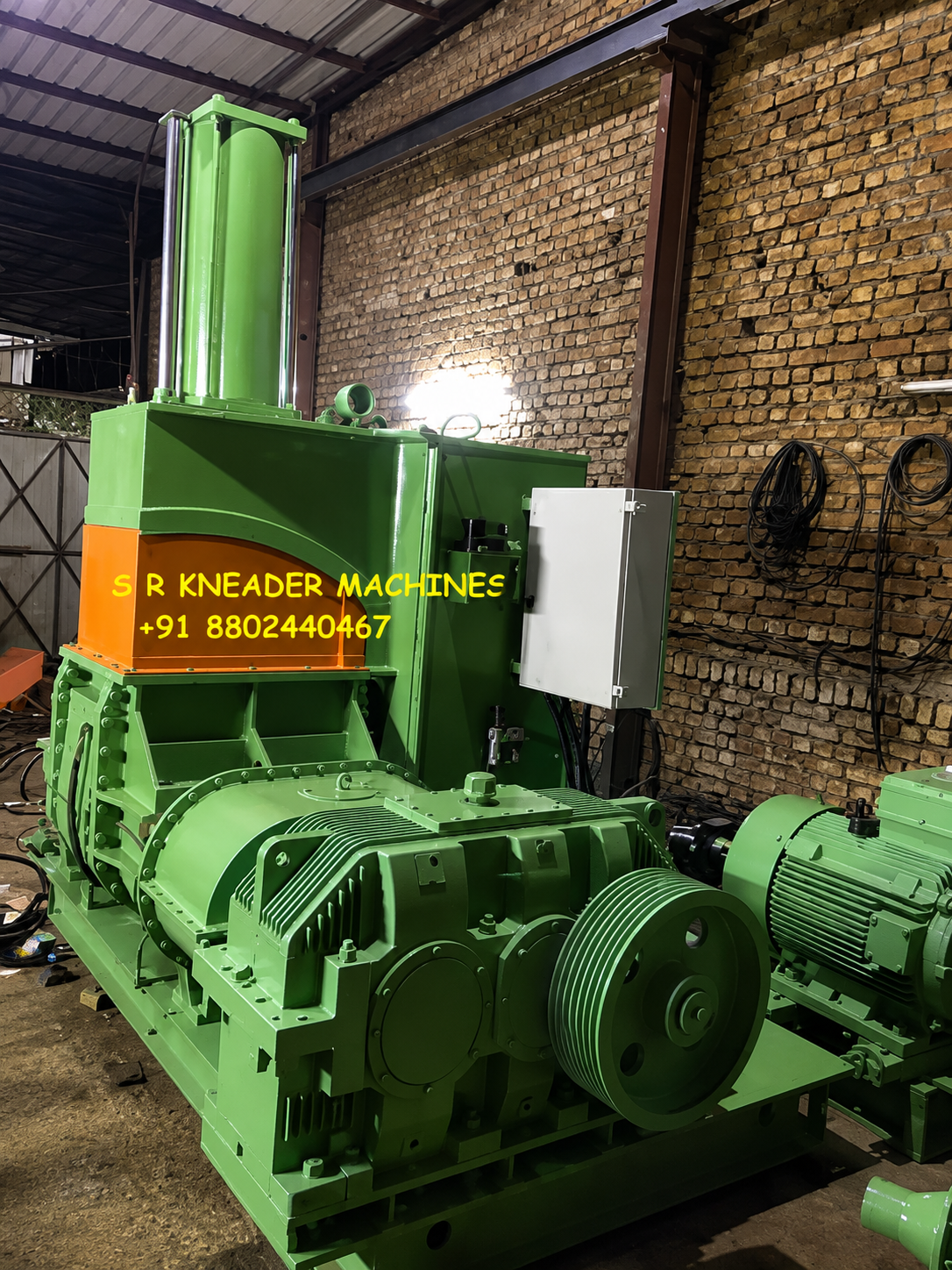

125 Litres Rubber Dispersion Kneader Machine
| Mixing Capacity | 125 Litres |
| Chamber Volume | 260 Litres |
| Main Motor | 150 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 24 RPM |
| Tilting Angle | 130 Degree |
| Tilting Motor | 5 HP |
| Air Compressor | 10 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and jacketed (both longitudinal and transverse) for steam heating and water cooling. The hydraulic tilt arrangement ensures smooth discharge and easy cleaning after every mixing cycle.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips provide excellent temperature regulation. The node lands are hard faced and precision profiled for long service life and consistent mixing performance.
Pressure Lid
Heavy-duty fabricated steel pressure lid with integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants.
Dust Seal
A specially designed dust sealing system maintains a clean working environment while allowing quick replacement and minimal maintenance.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.

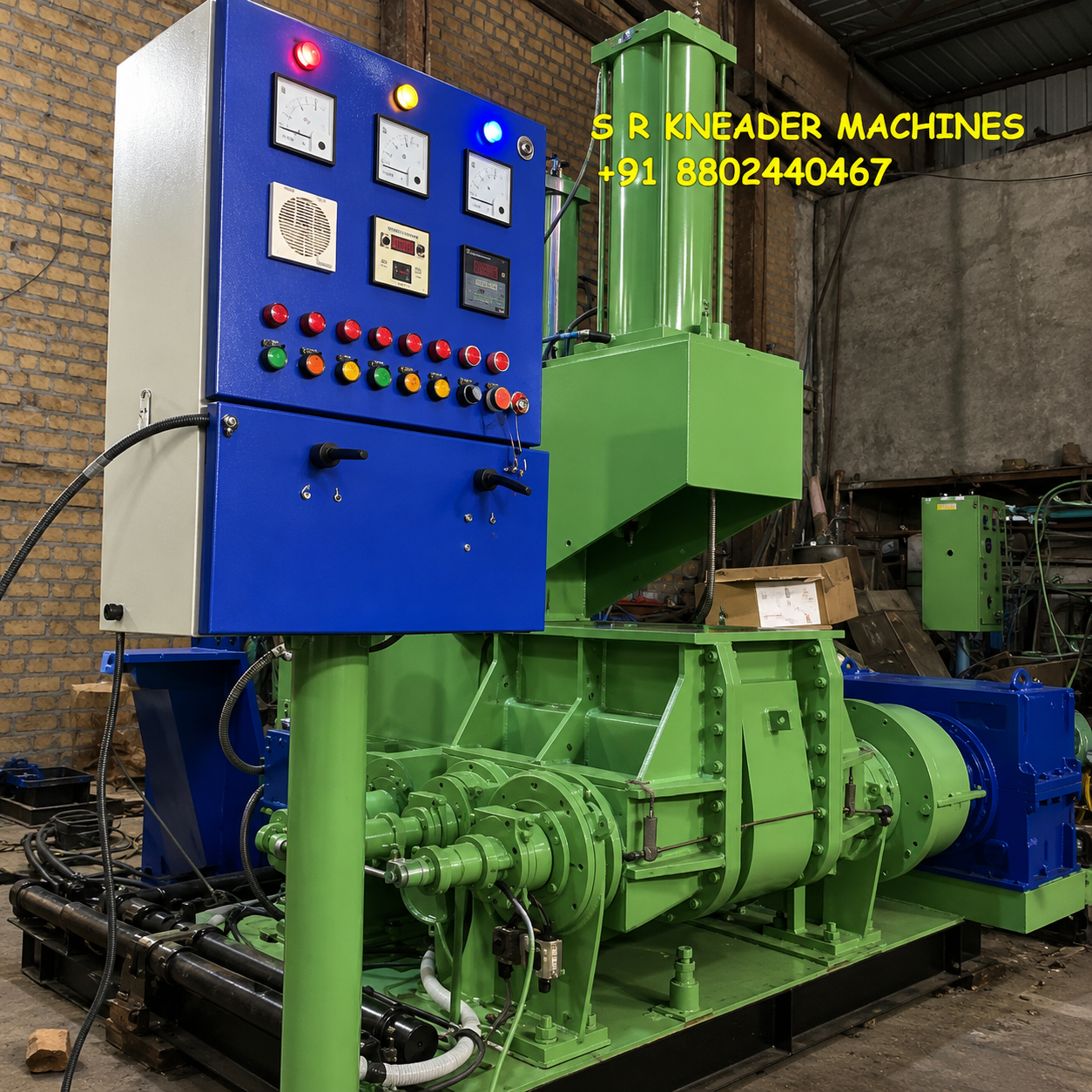

300 Litres Rubber Dispersion Kneader Machine
Minimum Order Quantity : 1 Piece
| Mixing Capacity | 300 Litres |
| Main Motor | 300 HP |
| Tilting Method | Hydraulic |
| Rotor Speed (Front / Rear) | 30 / 24 RPM |
| Tilting Angle | 120-140 Degree |
| Tilting Motor | 5 HP |
| Air Compressor | 15 HP |
| Country of Origin | Made in India |
Material Construction
Mixing Chamber
Fabricated from premium alloy steel, hard faced and fully jacketed (both longitudinal and transverse) for efficient steam heating and water cooling. The hydraulic tilt mechanism ensures quick discharge and effortless cleaning.
Mixing Rotors
Spirally annular alloy cast steel rotors with internally cored node tips provide excellent temperature regulation. The hard-faced and precision-profiled node lands ensure long service life and high mixing efficiency.
Pressure Lid
Heavy-duty fabricated steel pressure lid with an integrated heating and cooling jacket. Hard faced at the material contact area and available in both pneumatic and hydraulic variants.
Dust Seal
Specially engineered dust sealing system maintains a clean working environment while allowing quick replacement and low-maintenance operation.
Applications
- Automobile oil seals, body seals, gaskets, belts, hoses and tubes.
- Rubber for electric wires and cables.
- Conveyor belts and power transmission belts.
- Rubberized rolls.
- Rubber-based products such as plugs, caps, gloves and dental supplies for the medical industry.
Additional Information
| Production Capacity | As per Demand |
| Delivery Time | 15-20 Days |
| Packaging Details | As per Demand |
