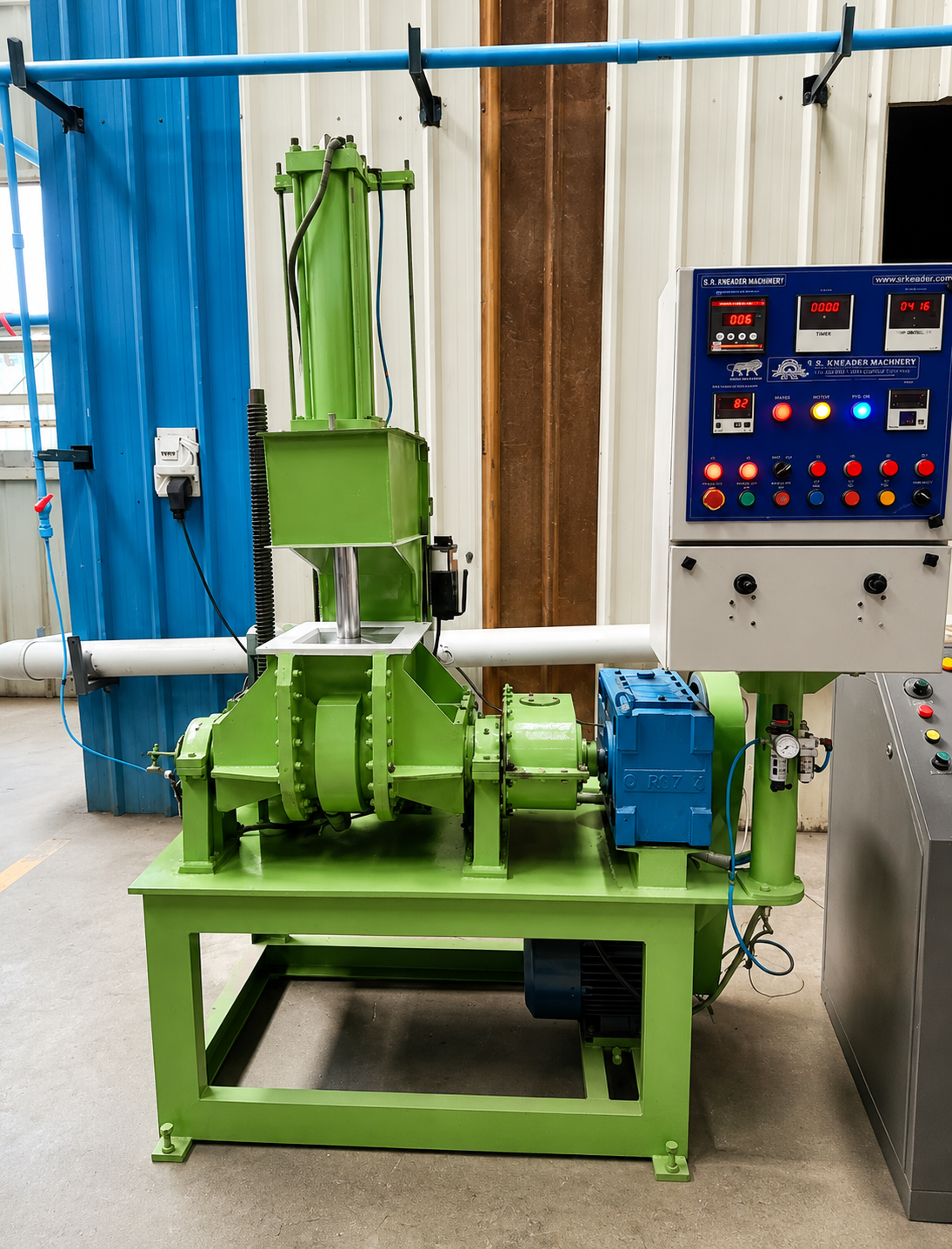

3 Litres Lab Rubber Dispersion Kneader Machine

Mixing Capacity 3 Litres
Chamber Volume 7 Litres
Main Motor 5 HP
Tilting Method Hydraulic
Rotor Speed (Front / Rear) 30/25 RPM
Tilting Angle 120-140 Degree
Tilting Motor 1 HP
Air Compressor 1 HP
Country of Origin Made in India
Lab Rubber Dispersion Kneader machine ensures homogeneous compound dispersion, easy colour change cleaning, and simple operation, and represents techno-economic achievement. This kneader may be used to combine a wide range of materials, from low viscosity adhesives to high viscosity rubber. The complete Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.

Material Construction

Mixing Chamber

Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling and tilt for easy discharge and cleaning.

Mixing Rotors

Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.

Pressure Lid

Jacketed for effective heating/cooling, steel fabricated, hard faced at mix contact area. (Pneumatic and hydraulic variants available.)

Dust Seal

Designed specifically to maintain the environment clean, and easily changed.

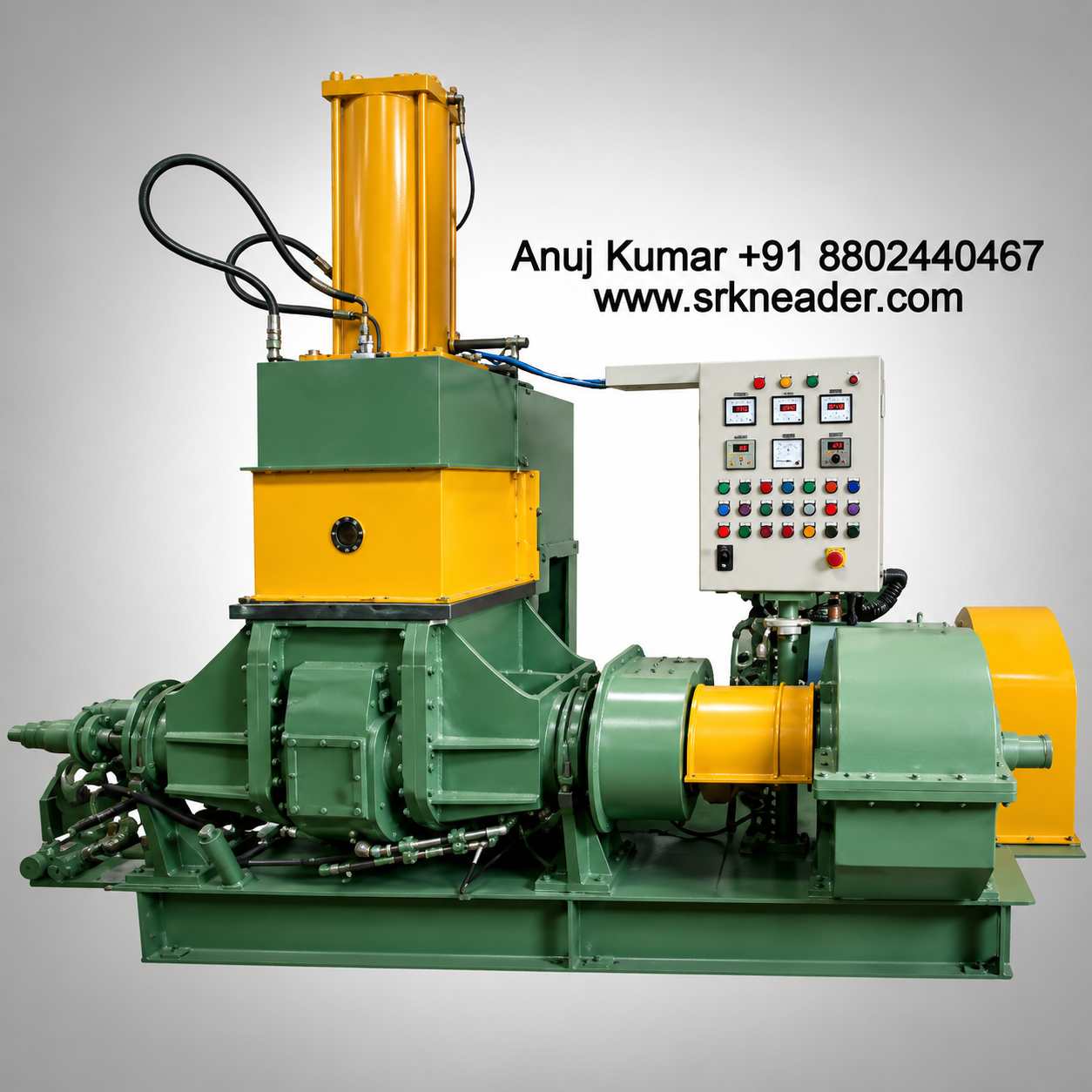

150 Litres Rubber Dispersion Kneader Machine

Mixing Capacity 150 Litres
Chamber Volume 325 Litres
Main Motor 200 HP
Tilting Method Hydraulic
Rotor Speed (Front / Rear) 30/25 RPM
Tilting Angle 120-140 Degree
Tilting Motor 7.5 HP
Air Compressor 10 HP
Country of Origin Made in India
Rubber Dispersion Kneader machine ensures homogeneous compound dispersion, easy colour change cleaning, and simple operation, and represents techno-economic achievement. This kneader may be used to combine a wide range of materials, from low viscosity adhesives to high viscosity rubber. The complete Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.

Material Construction

Mixing Chamber

Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling and tilt for easy discharge and cleaning.

Mixing Rotors

Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.

Pressure Lid

Jacketed for effective heating/cooling, steel fabricated, hard faced at mix contact area. (Pneumatic and hydraulic variants available.)

Dust Seal

Designed specifically to maintain the environment clean, and easily changed.

Applications

  • Automobile oil seals, body seals, gaskets, belts, hoses and tubes
  • Rubber for Electric wires
  • Conveyor Belts & Power transmission belts
  • Rubberized Rolls
  • Rubber-based products such as plugs, caps, gloves, and dental supplies for the medical line

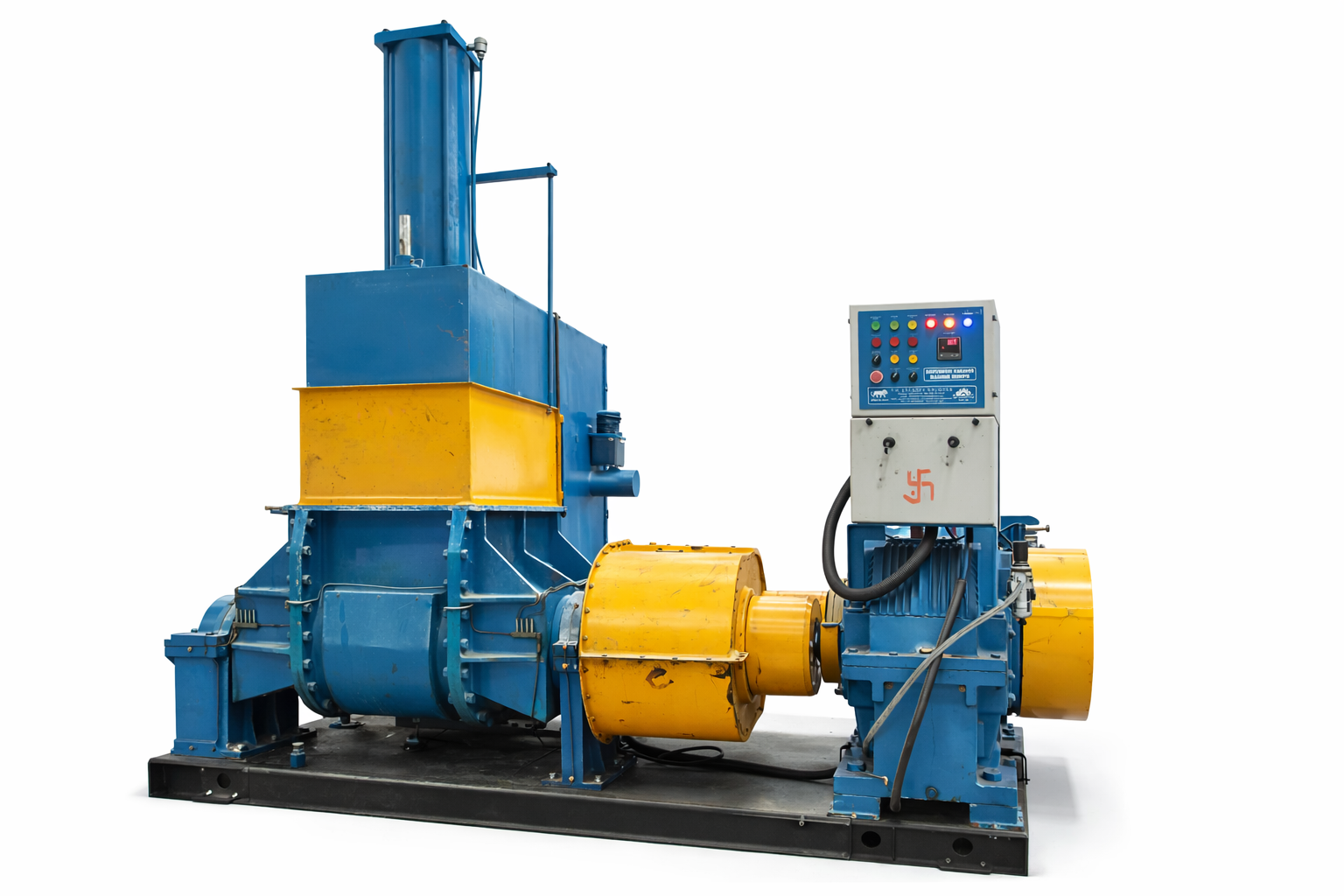

200 Litres Rubber Dispersion Kneader Machine

Minimum Order Quantity : 1 Piece

Mixing Capacity 200 Litres
Chamber Volume 470 Litres
Main Motor 150 kW
Tilting Method Hydraulic
Rotor Speed (Front / Rear) 30/25 RPM
Tilting Angle 120-140 Degree
Tilting Motor 5 HP
Air Compressor 15 HP
Country of Origin Made in India
Rubber Dispersion Kneader machine ensures homogeneous compound dispersion, easy colour change cleaning, and simple operation, and represents techno-economic achievement. This kneader may be used to combine a wide range of materials, from low viscosity adhesives to high viscosity rubber. The complete Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.

Material Construction

Mixing Chamber

Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling and tilt for easy discharge and cleaning.

Mixing Rotors

Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.

Pressure Lid

Jacketed for effective heating/cooling, steel fabricated, hard faced at mix contact area. (Pneumatic and hydraulic variants available.)

Dust Seal

Designed specifically to maintain the environment clean, and easily changed.

Applications

  • Automobile oil seals, body seals, gaskets, belts, hoses and tubes
  • Rubber for Electric wires
  • Conveyor Belts & Power transmission belts
  • Rubberized Rolls
  • Rubber-based products such as plugs, caps, gloves, and dental supplies for the medical line

Additional Information

Production Capacity As per demand
Delivery Time 20 Days aprox
Packaging Details As per demand

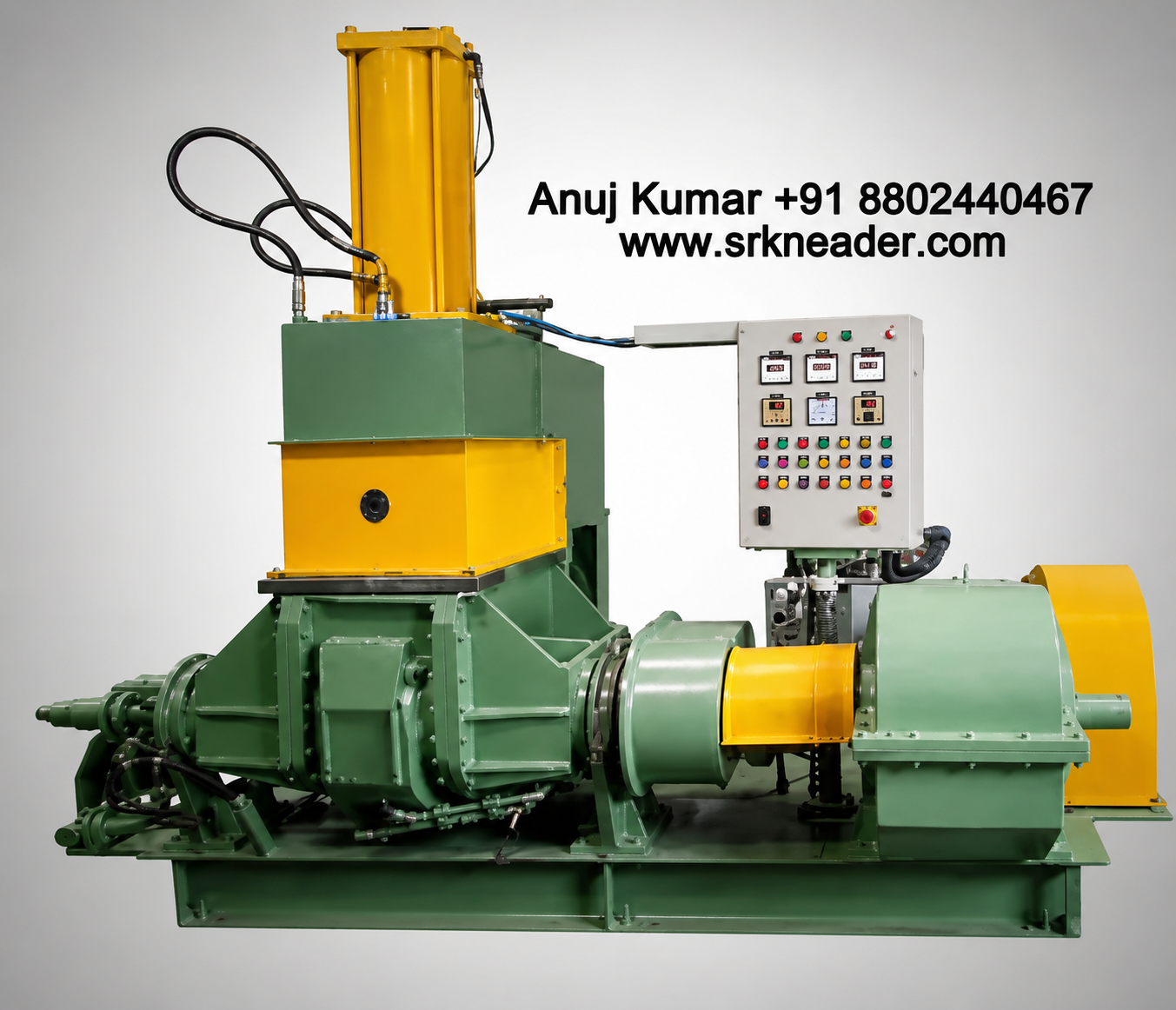

20 Litres Rubber Dispersion Kneader Machine

Minimum Order Quantity : 1 Piece

Mixing Capacity 15 Litres
Chamber Volume 25 Litres
Main Motor 15 kW
Tilting Method Hydraulic
Rotor Speed (Front / Rear) 30/24 RPM
Tilting Angle 130 Degree
Tilting Motor 2 HP
Air Compressor 2 HP
Country of Origin Made in India
Rubber Dispersion Kneader machine ensures homogeneous compound dispersion, easy colour change cleaning, and simple operation, and represents techno-economic achievement. This kneader may be used to combine a wide range of materials, from low viscosity adhesives to high viscosity rubber. The complete Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.

Material Construction

Mixing Chamber

Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling and tilt for easy discharge and cleaning.

Mixing Rotors

Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.

Pressure Lid

Jacketed for effective heating/cooling, steel fabricated, hard faced at mix contact area. (Pneumatic and hydraulic variants available.)

Dust Seal

Designed specifically to maintain the environment clean, and easily changed.

Applications

  • Automobile oil seals, body seals, gaskets, belts, hoses and tubes
  • Rubber for Electric wires
  • Conveyor Belts & Power transmission belts
  • Rubberized Rolls
  • Rubber-based products such as plugs, caps, gloves, and dental supplies for the medical line

Additional Information

Production Capacity As per demand
Delivery Time 15-20 days
Packaging Details As per demand

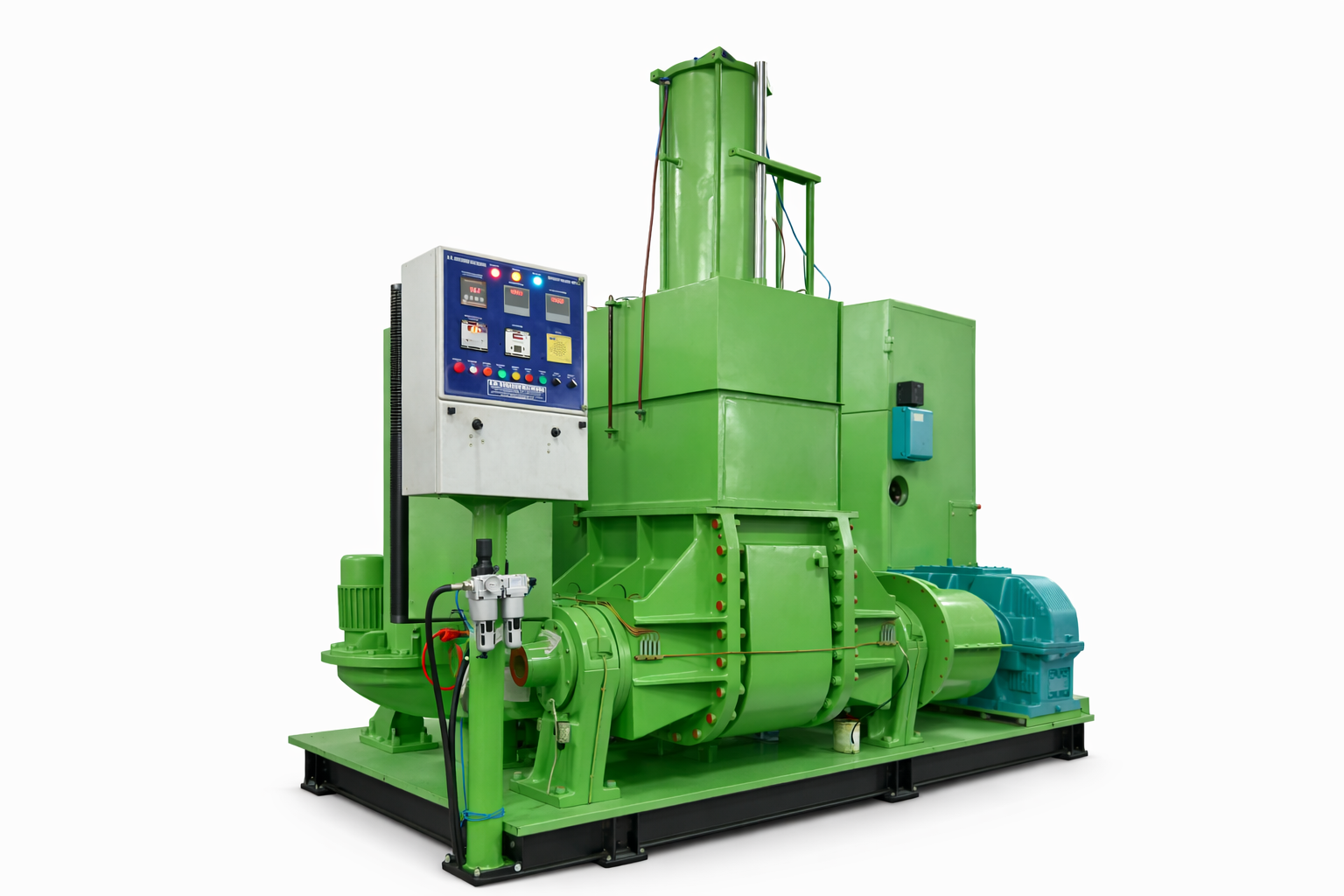

150 Litres Rubber Dispersion Kneader Machine

Minimum Order Quantity : 1 Piece

Mixing Capacity 150 Litres
Chamber Volume 325 Litres
Main Motor 200 HP
Tilting Method Hydraulic
Rotor Speed (Front / Rear) 30/25 RPM
Tilting Angle 120-140 Degree
Tilting Motor 5 HP
Air Compressor 10 HP
Country of Origin Made in India
Rubber Dispersion Kneader machine ensures homogeneous compound dispersion, easy colour change cleaning, and simple operation, and represents techno-economic achievement. This kneader may be used to combine a wide range of materials, from low viscosity adhesives to high viscosity rubber. The complete Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.

Material Construction Of Rubber Dispersion Kneader

Mixing Chamber

Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling and tilt for easy discharge and cleaning.

Mixing Rotors

Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.

Pressure Lid

Jacketed for effective heating/cooling, steel fabricated, hard faced at mix contact area. (Pneumatic and hydraulic variants available.)

Dust Seal

Designed specifically to maintain the environment clean, and easily changed.

Applications

  • Automobile oil seals, body seals, gaskets, belts, hoses and tubes
  • Rubber for Electric wires
  • Conveyor Belts & Power transmission belts
  • Rubberized Rolls
  • Rubber-based products such as plugs, caps, gloves, and dental supplies for the medical line

Additional Information

Production Capacity As per demand
Delivery Time 15-20 Days
Packaging Details As per demand

S.R. Kneader Machines is a leading manufacturer and exporter of Rubber Dispersion Kneader Machines, Mixing Mills, Rubber Kneader Machines, Extruder Machines, PVC Compound Machines, Filler Masterbatch Machines, Hydraulic Press Machines, Rubber Bale Cutters, Screen Changers, Gear Boxes, and complete rubber & plastic processing machinery.
